Grain Seed Gravity Separator for Paddy

Overview
Product Description
Machine Structure
Product Parameters
Cleaning Result
Machine Loading Picture
Client Cases
Installation Warehouse

Overview

Basic Info.

Model NO.	5XZ-8
Type	Cleaning Machine
Application	Beans, Wheat, Removing Empty and Blighted Grain
Voltage	380V
Appearance	Horizontal
Condition	New
Customized	Customized
Power	13.6kw
Capacity	4-5t/H Based on Soybean
Gravity Table	3180*1530mm
Weight	1400kg
Transport Package	Nude
Specification	5XZ-8
Trademark	BEIBU
Origin	Shijiazhuang, China
HS Code	8437109000
Production Capacity	200sets/Year

Packaging & Delivery

Package Size380.00cm * 175.00cm * 180.00cm Package Gross Weight1400.000kg

Product Description

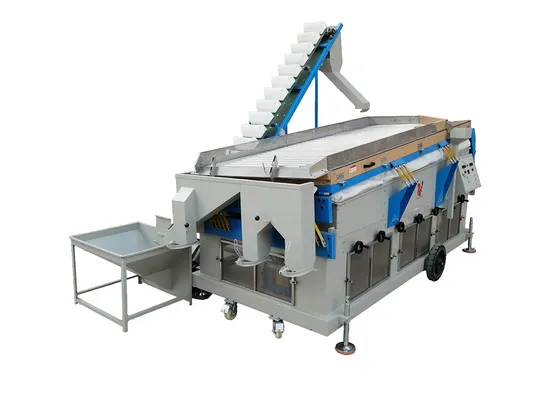

Grain Seed Gravity Separator for Paddy •Blowing type Gravity Separator will separate the moldy,blighted,and insected grain from the good grain.

•The raw material will deliver to the gravity separator by elevator,then the material will evenly scattered on the gravity separator table,with the fan motor under the table blow up the wind and the vibration of machine,and the different angle of the gravity table,the moldy,blighted, and insected grain will go to the down side and the good grain will go to the higher side and getting out, the middle part will be the mixed area,the mixed part will go to the slope elevator for the recycling. •The Gravity Separator can work for different grain like sesame,soybean,sunflower seeds,pepper seeds,pumpkin seeds,water melon seeds,and for soybean the capacity is about 3-4t/h, for sunflower seeds which is about 2.5t/h.

Grain Seed Gravity Separator for Paddy

Product Description

Machine Structure

Product Parameters

Model	5XZ-8	5XZ-10
Gravity Table Size	1380*3150mm	1500*3900mm
Power(kw)	13.2KW	15KW
Capacity(t/h)	5t/h based on beans	10t/h based on beans
Weight(kg)	1600	2000
Overall Size L×W×H(mm)	3870mmx1720mmx1700mm	4300×1960×2500
Voltage	380V,50HZ,three phase	380V,50HZ,three phase

Cleaning Result

Machine Loading Picture

Client Cases

Installation Warehouse
